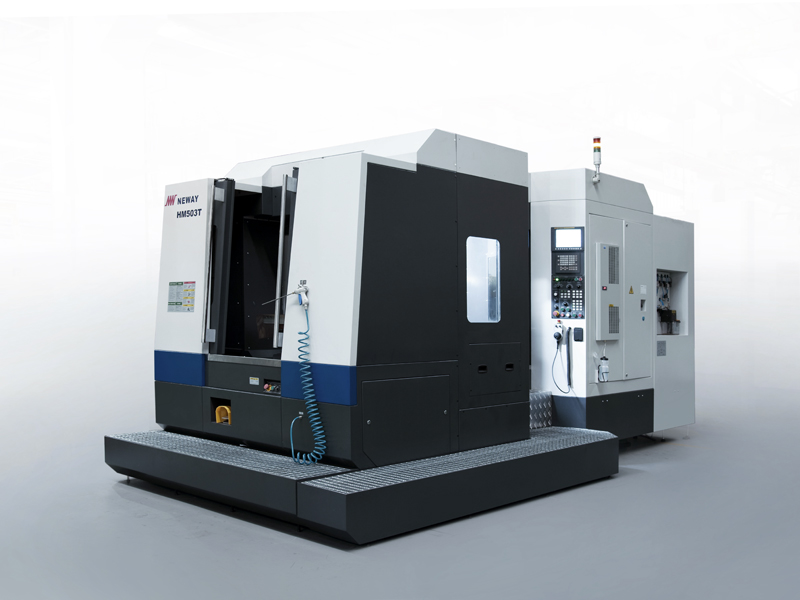

HM-50R ~ HM503T
| ITEM | UNIT | PARAMETERS | |
| WORK CUBE | Travel（X/Y/Z） | inch (mm) | 29.52 x 23.62 x 25.59 (750×600×650) |
| Spindle center to machining table | inch (mm) | 4.72 ~28.34 (120~720) | |
| Spindle nose to machining table | inch (mm) | 1.96~27.55 (50~700) | |
| WORKTABLE | Area（Length × Breadth） | inch (mm) | 2 – 19.68 x 19.68 (500×500) |
| Max. loading capacity | lbs (kg) | 500 | |
| Worktable Index | inch (mm) | 1°×360 | |
| T-slot (Number × Breadth × Spacing) | 5×18×100 | ||
| SPINDLE | Spindle speed | rpm | 20~6000 |
| Spindle taper | CAT50 | ||
| Spindle torque | Nm | 140/191 | |
| Spindle motor | kw | 11/15 | |
| SPEED | Rapid traverse speed（X/Y/Z） | m/min | 1181.10 (30) |
| Cutting feed speed | mm/min | 0.03 ~ 236.22 (1~6000) | |
| Min. increment | inch (mm) | 0.001 | |
| ATC TOOL CHANGER | Tool magazine capacity | 24 | |
| Type of tool shank | CAT50 | ||
| Type of pull stud | A50 | ||
| Max. tool diameter/length/weight | 4.33in/13.77in/44lbs (110mm/350mm/20kg) | ||
| Max. tool diameter (empty adjacent pockets) | inch (mm) | 9.84 (250) | |
| Tool selection | Random | ||
| Tool change time（T to T） | S | 3.8 | |
| PRECISION | Positioning accuracy（X/Y/Z） | inch (mm) | 0.0003 (0.01) |
| Repeatability（X/Y/Z） | inch (mm) | 0.0002 (0.006) | |
| B-axis indexing | arc sec | ±5 | |
| B-axis indexing repeatability | arc sec | ±1 | |
| OTHERS | Power capacity | kV A | 35 |
| Air supply / Air pressure | 300L/min 6~8bar | ||
| Cooling tank capacity | Gal (L) | 118.87 (450) | |
| Dimension（Length× Breadth× Height） | inch (mm) | 215.74 x 132.48 x 124.60 (5480×3365×3165) | |
| Machine weight | lbs (kg) | 28,660 (13000) |

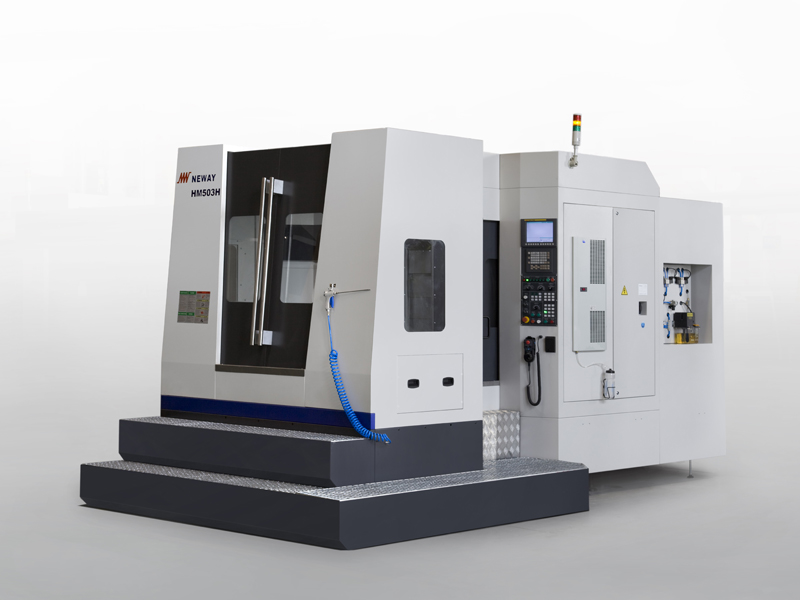

HM-50RSP ~ HM503H
| ITEM | UNIT | PARAMETERS | |
| WORK CUBE | Travel_X/Y/Z_ | inch (mm) | 29.52 x 25.59 x 25.59 (750_650_650) |
| Spindle center to machining table | inch (mm) | 4.72 ~ 30.31 (120~770) | |
| Spindle nose to machining table | inch (mm) | 1.96 ~ 27.55 (50~700) | |
| WORKTABLE | Area_Length _ Breadth_ | inch (mm) | 19.68 x 19.68 (500_500) |
| Max. loading capacity | lbs (kg) | 1322.77 (600) | |
| Worktable Index | inch (mm) | 1°_360 | |
| T-slot (Number _ Breadth _ Spacing) | 5_18_100 | ||
| SPINDLE | Spindle speed | rpm | 20~6000 |
| Spindle taper | CAT50 | ||
| Spindle torque | Nm | 140/191 | |
| Spindle motor | kw | 11/15 | |
| SPEED | Rapid traverse speed_X/Y/Z_ | m/min | 1181.10 (30) |
| Cutting feed speed | mm/min | 0.03 ~ 236.22 (1~6000) | |
| ATC TOOL CHANGER | Tool magazine capacity | 24 | |
| Type of tool shank | CAT50 | ||
| Type of pull stud | A50 | ||
| Max. tool diameter/length/weight | 4.33in/13.77in/44lbs (110mm/350mm/20kg) | ||
| Max. tool diameter (empty adjacent pockets) | inch (mm) | 9.84 (250) | |
| Tool selection | Random | ||
| Tool change time_T to T_ | S | 3.8 | |
| PRECISION | Positioning accuracy_X/Y/Z_ | inch (mm) | 0.0003 (0.01) |
| Repeatability_X/Y/Z_ | inch (mm) | 0.0002 (0.006) | |
| B-axis indexing | arc sec | ±5 | |
| B-axis indexing repeatability | arc sec | ±1 | |
| OTHERS | Power capacity | kV A | 35 |
| Air supply / Air pressure | 300L/min 6~8bar | ||
| Cooling tank capacity | Gal (L) | 118.87 (450) | |
| Dimension_Length_ Breadth_ Height_ | inch (mm) | 187.00 x 132.48 x 124.60 (4750 x 3365 x3165) | |
| Machine weight | lbs (kg) | 26,455 (12000) |

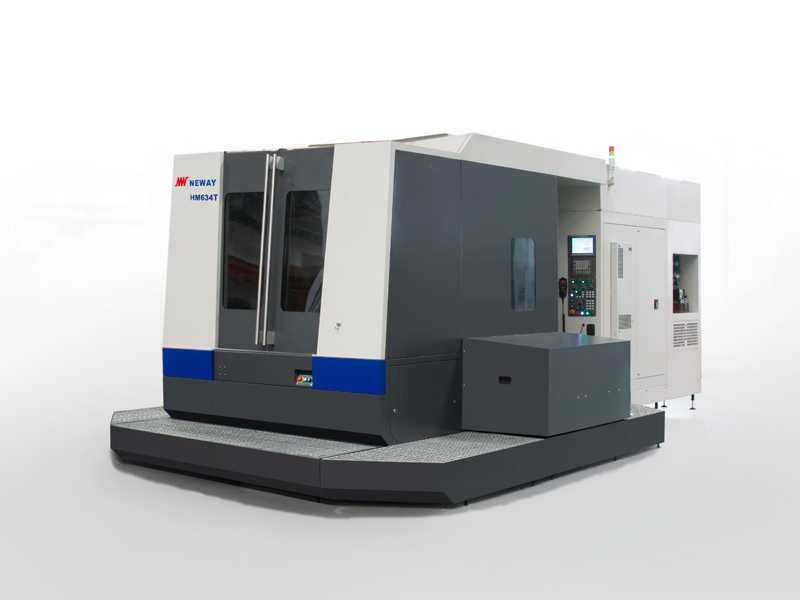

HM-63R ~ HM634T
| ITEM | UNIT | PARAMETERS | |
| WORK CUBE | Travel（X/Y/Z） | inch (mm) | 39.37 x 33.46 x 35.43 (1000×850×900) |
| Spindle center to machining table | inch (mm) | 0~ 33.46 (0 – 850) | |
| Spindle nose to machining table | inch (mm) | 7.87~43.30 (200~1100) | |
| WORKTABLE | Area（Length × Breadth） | inch (mm) | 2 – 24.83 X 24.83 (630×630) |
| Max. loading capacity | lbs (kg) | 2645.54 (1200) | |
| Worktable Index | 1°×360 | ||
| T-slot (Number × Breadth × Spacing) | 5×18×125 | ||
| SPINDLE | Spindle speed | rpm | 20~4500 |
| Spindle taper | CAT50 | ||
| Spindle torque | Nm | 647/770 | |
| Spindle motor | kw | 18.5/22 | |
| SPEED | Rapid traverse speed（X/Y/Z） | m/min | 1181.10 (30) |
| Cutting feed speed | mm/min | 1~393.70 (1~10000) | |
| ATC TOOL CHANGER | Tool magazine capacity | 32 | |
| Type of tool shank | CAT50 | ||
| Type of pull stud | A50 | ||
| Max. tool diameter/length/weight | 4.92in/15.74in/44lbs (125mm/400mm/20kg) | ||
| Max. tool diameter (empty adjacent pockets) | inch (mm) | 9.84 (250) | |
| Tool selection | Random | ||
| Tool change time（T to T） | S | 4.75 | |
| PRECISION | Positioning accuracy（X/Y/Z） | inch (mm) | 0.0003 (0.01) |
| Repeatability（X/Y/Z） | inch (mm) | 0.0002 (0.006) | |
| B-axis indexing | arc sec | ±5 | |
| B-axis indexing repeatability | arc sec | ±1 | |
| OTHERS | Power capacity | kV A | 55 |
| Air supply / Air pressure | 650L/min 6~8bar | ||
| Cooling tank capacity | Gal (L) | 171.71 (650) | |
| Dimension（Length× Breadth× Height） | inch (mm) | 250.78 x 170.47 x 132.67 (6760×4330×3370) | |
| Machine weight | lbs (kg) | 46,297 (21000) |

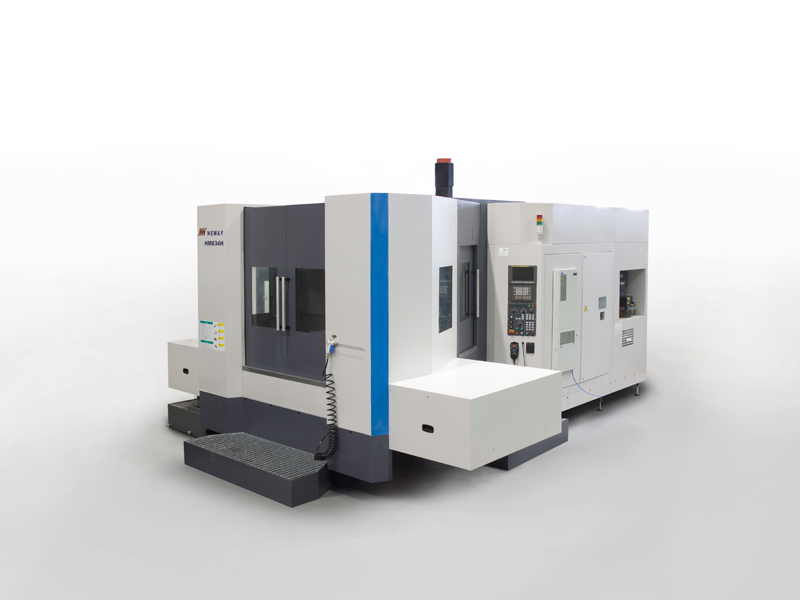

HM-63RSP ~ HM634H
| ITEM | UNIT | PARAMETERS | |
| WORK CUBE | Travel（X/Y/Z） | inch (mm) | 39.37 x 33.46 x 35.43 (1000×850×900) |
| Spindle center to machining table | inch (mm) | 3.93 ~ 37.40 (100~950) | |
| Spindle nose to machining table | inch (mm) | 7.87~43.30 (200~1100) | |
| WORKTABLE | Area（Length × Breadth） | inch (mm) | 24.83 X 24.83 (630×630) |
| Max. loading capacity | lbs (kg) | 2645.54 (1200) | |
| Worktable Index | 1°×360 | ||
| T-slot (Number × Breadth × Spacing) | 5×18×125 | ||
| SPINDLE | Spindle speed | rpm | 20~4500 |
| Spindle taper | CAT50 | ||
| Spindle torque | Nm | 647/770 | |
| Spindle motor | kw | 18.5/22 | |
| SPEED | Rapid traverse speed（X/Y/Z） | m/min | 1181.10 (30) |
| Cutting feed speed | mm/min | 1~393.70 (1~10000) | |
| ATC TOOL CHANGER | Tool magazine capacity | 32 | |
| Type of tool shank | CAT50 | ||
| Type of pull stud | A50 | ||
| Max. tool diameter/length/weight | 4.92in/15.74in/44lbs (125mm/400mm/20kg) | ||
| Max. tool diameter (empty adjacent pockets) | inch (mm) | 9.84 (250) | |
| Tool selection | Random | ||
| Tool change time（T to T） | S | 4.75 | |
| PRECISION | Positioning accuracy（X/Y/Z） | inch (mm) | 0.0003 (0.01) |
| Repeatability（X/Y/Z） | inch (mm) | 0.0002 (0.006) | |
| B-axis indexing | arc sec | ±5 | |
| B-axis indexing repeatability | arc sec | ±1 | |
| OTHERS | Power capacity | kV A | 55 |
| Air supply / Air pressure | 650L/min 6~8bar | ||
| Cooling tank capacity | Gal (L) | 171.71 (650) | |
| Dimension（Length× Breadth× Height） | inch (mm) | 224.01 x 170.47 x 132.67 (5690×4330×3370) | |
| Machine weight | lbs (kg) | 39, 683 (18000) |

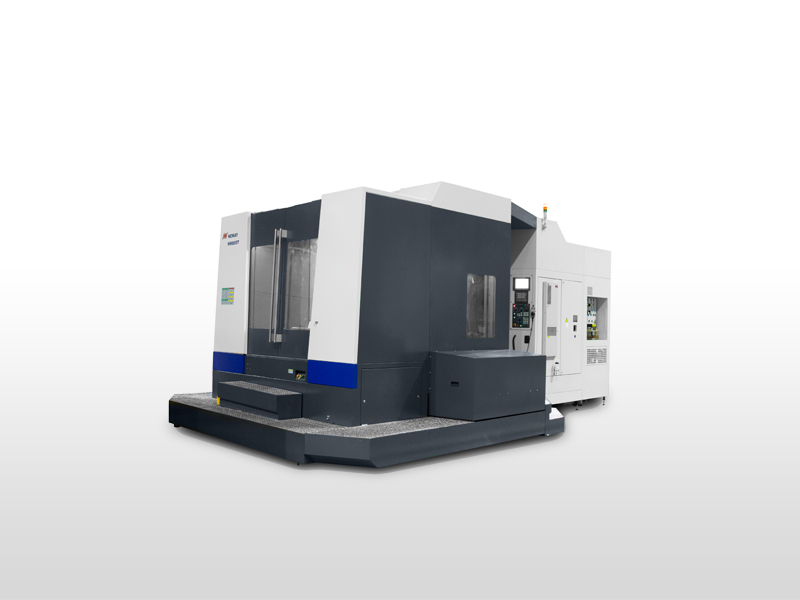

HM-80R ~ HM805TP
| ITEM | UNIT | PARAMETERS | |
| WORK CUBE | Travel（X/Y/Z） | inch (mm) | 55.11 x 41.33 x 41.33 (1400 x 1050 x 1050) |
| Spindle center to machining table | inch (mm) | 4.72 – 42.12 (120-1070) | |
| Spindle nose to machining table | inch (mm) | 9.84 – 51.18 (250-1300) | |
| WORKTABLE | Area（Length × Breadth） | inch (mm) | 2 – 31.49 x 31.49 (800 x 800) |
| Max. loading capacity | lbs (kg) | 3527 (1600) | |
| Worktable Index | 1°×360 | ||
| T-slot (Number × Breadth × Spacing) | 5 x 22 x 160 | ||
| SPINDLE | Spindle speed | rpm | 20-4500 |
| Spindle taper | CAT50 | ||
| Spindle torque | Nm | 770/910 | |
| Spindle motor | kw | 22/26 | |
| SPEED | Rapid traverse speed（X/Y/Z） | m/min | 944.88 (24) |
| Cutting feed speed | mm/min | 1 – 393.70 (1 – 10000) | |
| ATC TOOL CHANGER | Tool magazine capacity | 40 | |
| Type of tool shank | CAT50 | ||
| Type of pull stud | A50 | ||
| Max. tool diameter/length/weight | 4.92in/19.69in/55lbs(125mm/500mm/25kg) | ||
| Max. tool diameter (empty adjacent pockets) | inch (mm) | 9.84 (250) | |
| Tool selection | Random | ||
| Tool change time（T to T） | S | 4.7 | |
| PRECISION | Positioning accuracy（X/Y/Z） | inch (mm) | 0.0004 (0.012) |
| Repeatability（X/Y/Z） | inch (mm) | 0.0003 (0.008) | |
| B-axis indexing | arc sec | ±5 | |
| B-axis indexing repeatability | arc sec | ±3 | |
| OTHERS | Power capacity | kV A | 75 |
| Air supply / Air pressure | 500L/min/6-8 bar | ||
| Cooling tank capacity | Gal (L) | 198 (750) | |
| Dimension（Length× Breadth× Height） | inch (mm) | 307.08 x 190.94 x 157.48 (7800 x 4850 x 4000) | |
| Machine weight | lbs (kg) | 50,706 (23000) |

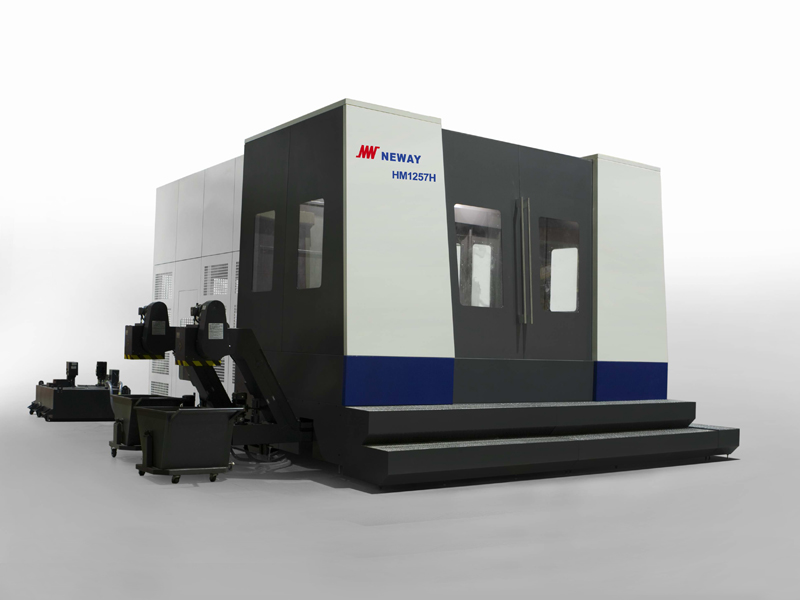

HM-125RSP ~ HM1257H
| ITEM | UNIT | PARAMETERS | |
| WORK CUBE | Travel（X/Y/Z） | inch (mm) | 86.61 x 59.05 x 59.05 (2200x1500x1500) |
| Spindle center to machining table | inch (mm) | 4.72 – 63.77 (120-1620) | |
| Spindle nose to machining table | inch (mm) | 11.81 – 70.86 (300-1800) | |
| WORKTABLE | Area（Length × Breadth） | inch (mm) | 49.21 x 49.21 (1250×1250) |
| Max. loading capacity | lbs (kg) | 8818.49 (4000) | |
| Worktable Index | 1°×360 | ||
| T-slot (Number × Breadth × Spacing) | 7 x 22 x 160 | ||
| SPINDLE | Spindle speed | rpm | 20~4500 |
| Spindle taper | CAT50 | ||
| Spindle torque | Nm | 1155/1365 | |
| Spindle motor | kw | 22/26 | |
| SPEED | Rapid traverse speed（X/Y/Z） | m/min | 787.40 (20) |
| Cutting feed speed | mm/min | 0.03 ~ 393.70 (1~10000) | |
| ATC TOOL CHANGER | Tool magazine capacity | 60 | |
| Type of tool shank | CAT50 | ||
| Type of pull stud | A50 | ||
| Max. tool diameter/length/weight | 4.92in/23.62in/77lbs (125mm/600mm/35kg) | ||
| Max. tool diameter (empty adjacent pockets） | inch (mm) | 9.84 (250) | |
| Tool selection | Random | ||
| Tool change time (T to T) | S | 7.5 | |
| PRECISION | Positioning accuracy（X/Y/Z） | inch (mm) | 0.0005 (0.015) |
| Repeatability（X/Y/Z） | inch (mm) | 0.0003 (0.01) | |
| B-axis indexing | arc sec | ±5 | |
| B-axis indexing repeatability | arc sec | ±3 | |
| OTHERS | Power capacity | kV A | 80 |
| Air supply / Air pressure | 500L/min/6-8 bar | ||
| Cooling tank capacity | Gal (L) | 211.33 (800) | |
| Dimension（Length× Breadth× Height） | inch (mm) | 307.08 x 299.21 x 190.94 (7800 x 7600 x 4850) | |
| Machine weight | lbs (kg) | 77,161 (35000) |
HM-125R ~ HM1257H
| ITEM | UNIT | PARAMETERS | |
| WORK CUBE | Travel（X/Y/Z） | inch (mm) | 86.61 x 59.05 x 59.05 (2200x1500x1500) |
| Spindle center to machining table | inch (mm) | 4.72 – 63.77 (120-1620) | |
| Spindle nose to machining table | inch (mm) | 11.81 – 70.86 (300-1800) | |
| WORKTABLE | Area（Length × Breadth） | inch (mm) | 2 – 49.21 x 49.21 (1250×1250) |
| Max. loading capacity | lbs (kg) | 8818.49 (4000) | |
| Worktable Index | 1°×360 | ||
| T-slot (Number × Breadth × Spacing) | 7 x 22 x 160 | ||
| SPINDLE | Spindle speed | rpm | 20~4500 |
| Spindle taper | CAT50 | ||
| Spindle torque | Nm | 1155/1365 | |
| Spindle motor | kw | 22/26 | |
| SPEED | Rapid traverse speed（X/Y/Z） | m/min | 787.40 (20) |
| Cutting feed speed | mm/min | 0.03 ~ 393.70 (1~10000) | |
| ATC TOOL CHANGER | Tool magazine capacity | 60 | |
| Type of tool shank | CAT50 | ||
| Type of pull stud | A50 | ||
| Max. tool diameter/length/weight | 4.92in/23.62in/77lbs (125mm/600mm/35kg) | ||
| Max. tool diameter (empty adjacent pockets） | inch (mm) | 9.84 (250) | |
| Tool selection | Random | ||
| Tool change time (T to T) | S | 7.5 | |
| PRECISION | Positioning accuracy（X/Y/Z） | inch (mm) | 0.0005 (0.015) |
| Repeatability（X/Y/Z） | inch (mm) | 0.0003 (0.01) | |
| B-axis indexing | arc sec | ±5 | |
| B-axis indexing repeatability | arc sec | ±3 | |
| OTHERS | Power capacity | kV A | 80 |
| Air supply / Air pressure | 500L/min/6-8 bar | ||
| Cooling tank capacity | Gal (L) | 211.33 (800) | |
| Dimension（Length× Breadth× Height） | inch (mm) | 385.83 x 299.21 x 190.94 (9800 x 7600 x 4850) | |
| Machine weight | lbs (kg) | 83,775 (38000) |

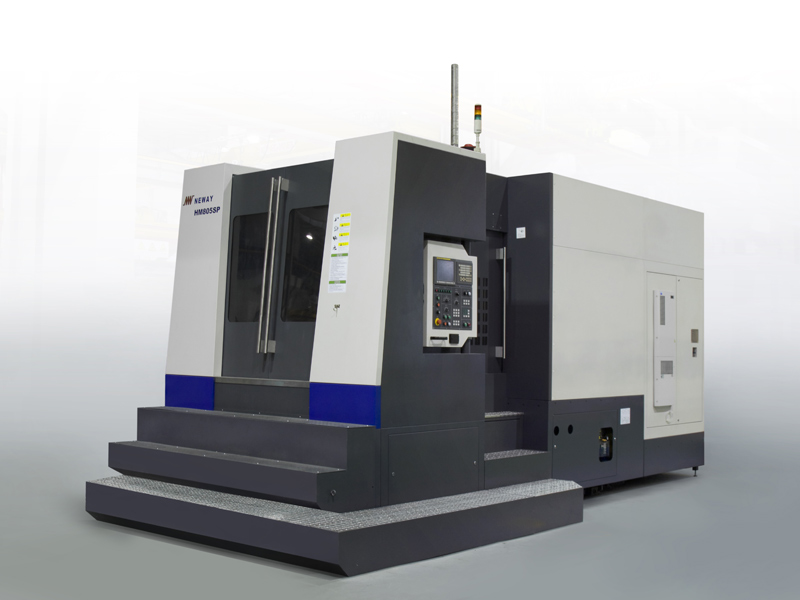

HM-80RSP ~ HM805SH
| ITEM | UNIT | PARAMETERS | |
| WORK CUBE | Travel（X/Y/Z） | inch (mm) | 55.11 x 41.33 x 41.33 (1400 x 1050 x 1050) |
| Spindle center to machining table | inch (mm) | 4.72 ~ 46.06 (120~1170) | |
| Spindle nose to machining table | inch (mm) | 9.84 ~51.18 (250~1300) | |
| WORKTABLE | Area（Length × Breadth） | inch (mm) | 31.49 x 31.49 (800 x 800) |
| Max. loading capacity | lbs (kg) | 3527.39 (1600) | |
| Worktable Index | 1°×360 | ||
| T-slot (Number × Breadth × Spacing) | 5 x 22 x 160 | ||
| SPINDLE | Spindle speed | rpm | 20-4500 |
| Spindle taper | CAT50 | ||
| Spindle torque | Nm | 770/910 | |
| Spindle motor | kw | 22/26 | |
| SPEED | Rapid traverse speed（X/Y/Z） | m/min | 944.88(24) |
| Cutting feed speed | mm/min | 1 – 393.70 (1 – 10000) | |
| ATC TOOL CHANGER | Tool magazine capacity | 40 | |
| Type of tool shank | CAT50 | ||
| Type of pull stud | A50 | ||
| Max. tool diameter/length/weight | 4.92in/19.69in/55lbs (125mm/500mm/25kg) | ||
| Max. tool diameter (empty adjacent pockets) | inch (mm) | 9.84 (250) | |
| Tool selection | Random | ||
| Tool change time（T to T） | S | 4.75 | |
| PRECISION | Positioning accuracy（X/Y/Z） | inch (mm) | 0.0004 (0.012) |
| Repeatability（X/Y/Z） | inch (mm) | 0.0003 (0.008) | |
| B-axis indexing | arc sec | ±5 | |
| B-axis indexing repeatability | arc sec | ±3 | |
| OTHERS | Power capacity | kV A | 75 |
| Air supply / Air pressure | 500L/min/6-8 bar | ||
| Cooling tank capacity | Gal (L) | 198.12 (750) | |
| Dimension（Length× Breadth× Height） | inch (mm) | 244.09 x 190.94 x 157.48 (6200 x 4850 x 4000) | |
| Machine weight | lbs (kg) | 44,092 (20000) |
